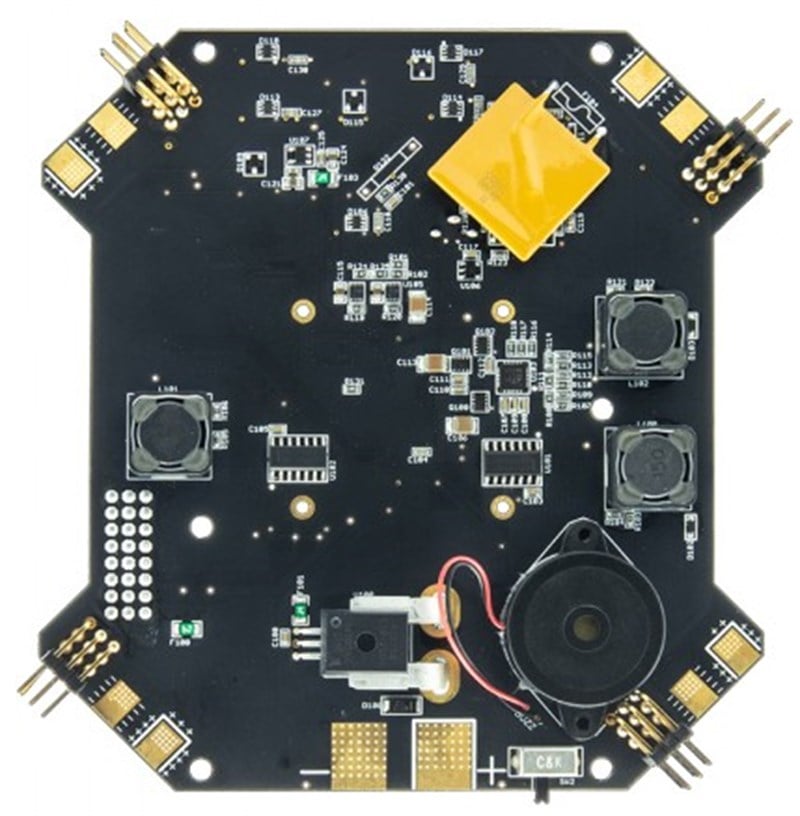

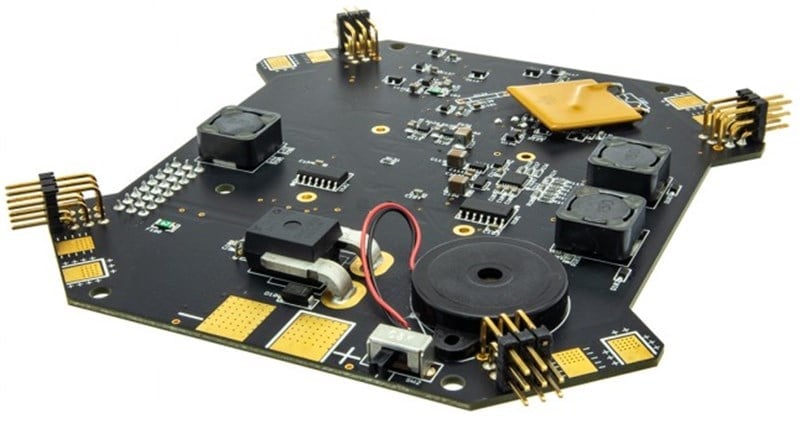

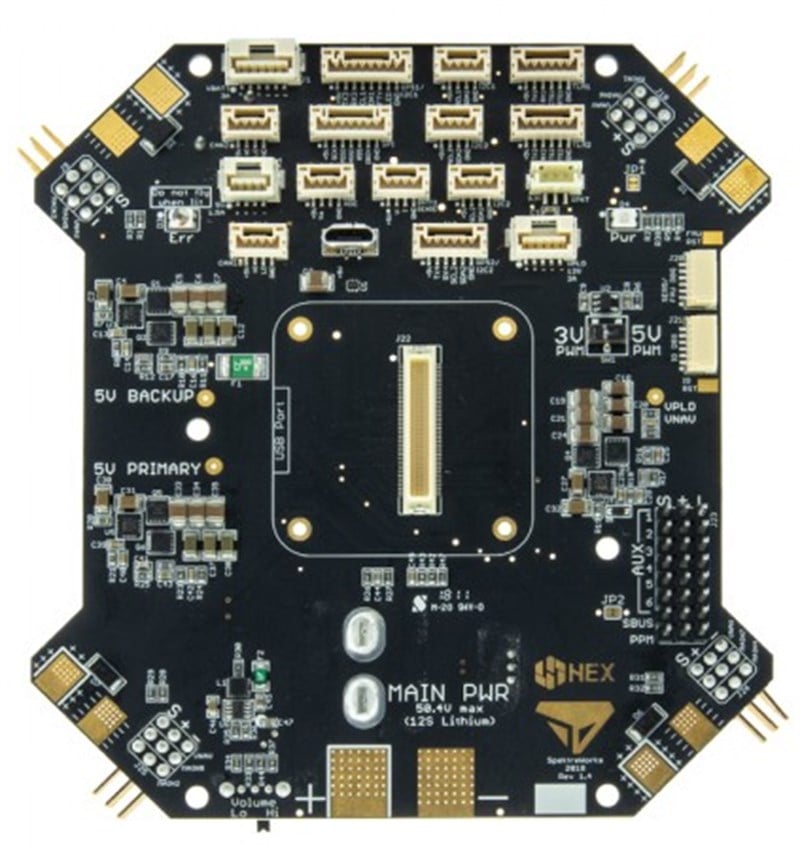

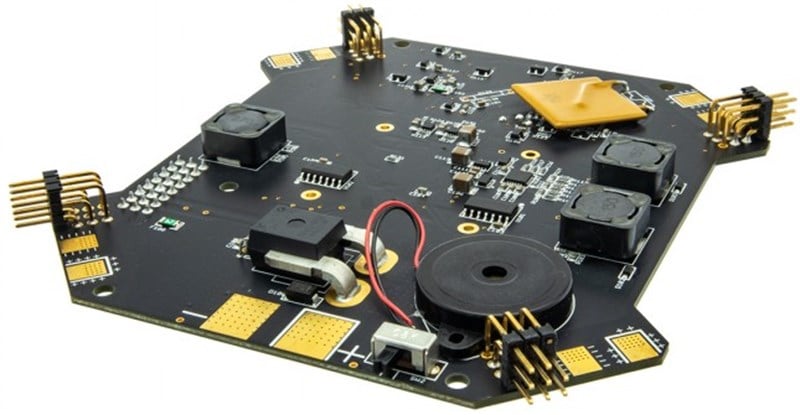

Kore Carrier Board

İndirim Oranı : %5 İndirim
Fiyat : ₺1.907,93  + KDV
İndirimli : ₺1.812,53  + KDV
KDV Dahil : ₺2.138,79
* ₺265,04 'den başlayan taksitlerle

Çok fonksiyonlu Carrier Board! Hem güç dağıtım ünitesi, hem akım ölçer, hem 5V-12V Bec, hem buzzer. Hepsi bir arada, tak ve çalıştır!

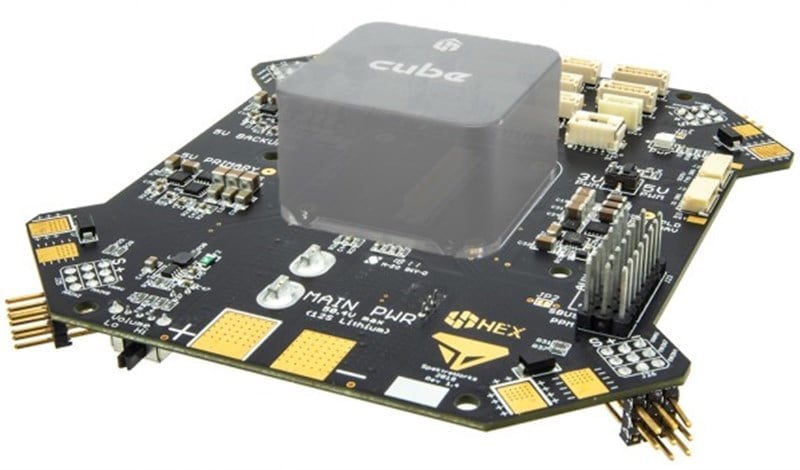

Not: Fiyata Cube Otopilot Dahil Değildir.

FEATURES AT-A-GLANCE

  • Up to 12-cell Lithium battery (50.4V)
  • 140A continuous current with 280A surges
  • Power and signal for ESCs conveniently located in corners
  • 12V navigation light power available at each cornerBuilt-in power distribution
  • Built-in voltage and current sense
  • Redundant power supplies for flight critical components
  • Payload connectors with resettable fuses for 5V, 12V, and direct battery power
  • Good power and error indicator lights
  • Built-in buzzer with volume control
  • Connectors for every function of Pixhawk Cube
  • Easily accessible PWM voltage level selector (3.3V or 5V)
  • Resistant to ground bounce on PWM signal
  • Connector-compatible with standard ProfiCNC carrier board
  • Connector ports for debugging IO and FMU processors

STANDARD CABLES:

4-pin JST GH
6-pin JST GH

PAYLOAD POWER CABLES:

4-pin Clik-Mate 1.25mm (for 5V payload power)
5-pin Clik-Mate 1.25mm (for 12V payload power)
6-pin Clik-Mate 1.25mm (for battery payload power)



NOTE: Pixhawk 2.1 Cube NOT included.
